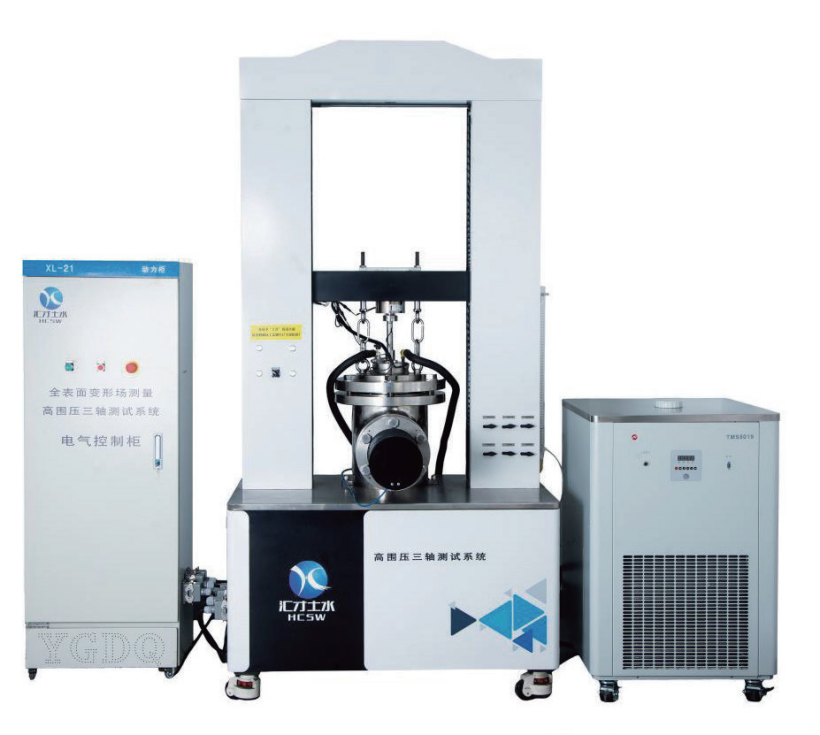

High Confining Pressure Triaxial Testing System

System Description

This system can apply a wide range of axial loads, confining pressures and back pressures. Its full-surface deformation image measurement system captures both global and local deformations of soil specimens. It is widely used in deep-sea resource development, nuclear waste storage and other fields.

It supports B-test, back-pressure saturation, UU, CU, CD, confining pressure loading-unloading cycles, axial pressure loading-unloading cycles, K₀ tests, stress path tests, creep tests, as well as customized user-defined tests.

System Features

Equipped with an image measurement function, with a strain measurement accuracy of 10⁻⁴.

Upgrade Options

• Unsaturated soil function

• Hydrate triaxial testing

• Temperature control function

• Acoustic emission function

• Remote cloud service

• Bender element testing function

Technical Specifications

• Specimen Size: 38mm / 39.1mm / 50mm / 61.8mm.

• Maximum Axial Load: 100kN / 150kN (customizable).

• Axial Load Accuracy: 0.1% F.S.

• Axial Loading Rate: 0.001～50 mm/min,

• Confining Pressure / Back Pressure / Pore Pressure Range: 0~10MPa / 0~20MPa / 0~30MPa (customizable).

• Confining Pressure / Back Pressure Accuracy: 0.15% F.S. or 0.25% F.S.

• Image Resolution: 2592×1244 pixels, sub-pixel recognition (customizable).

• Image Measurement Accuracy: 10⁻⁴ ~ 10⁻⁵ × specimen height.
